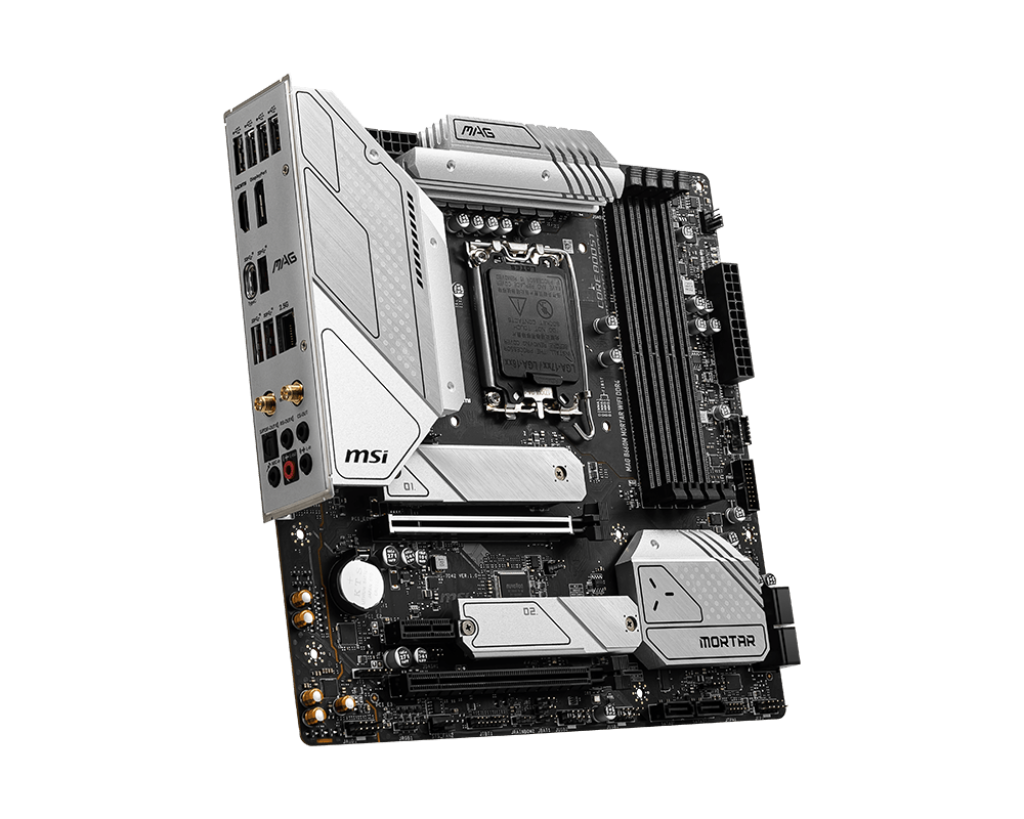

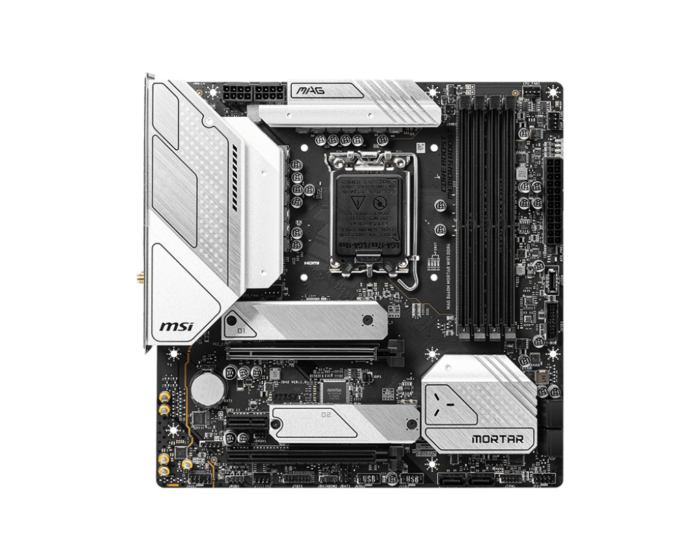

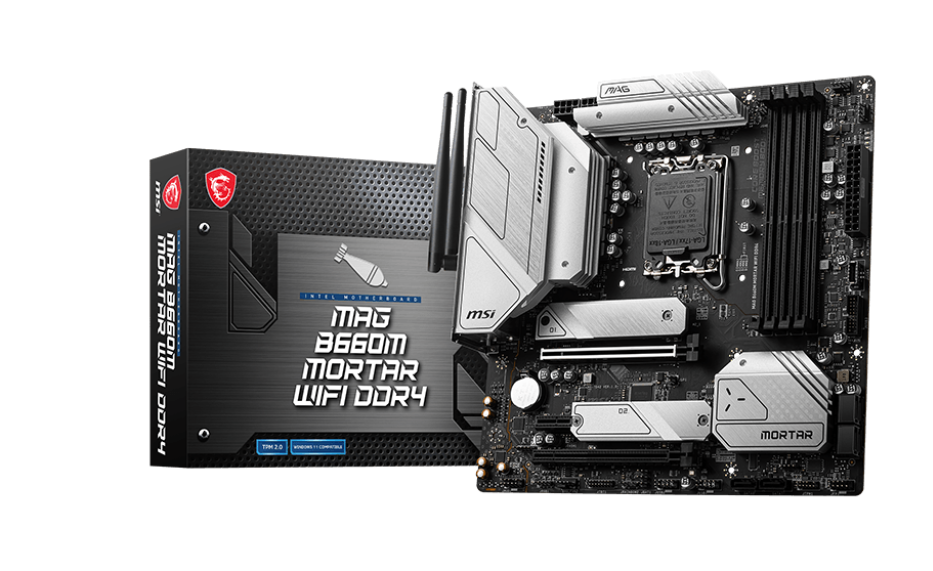

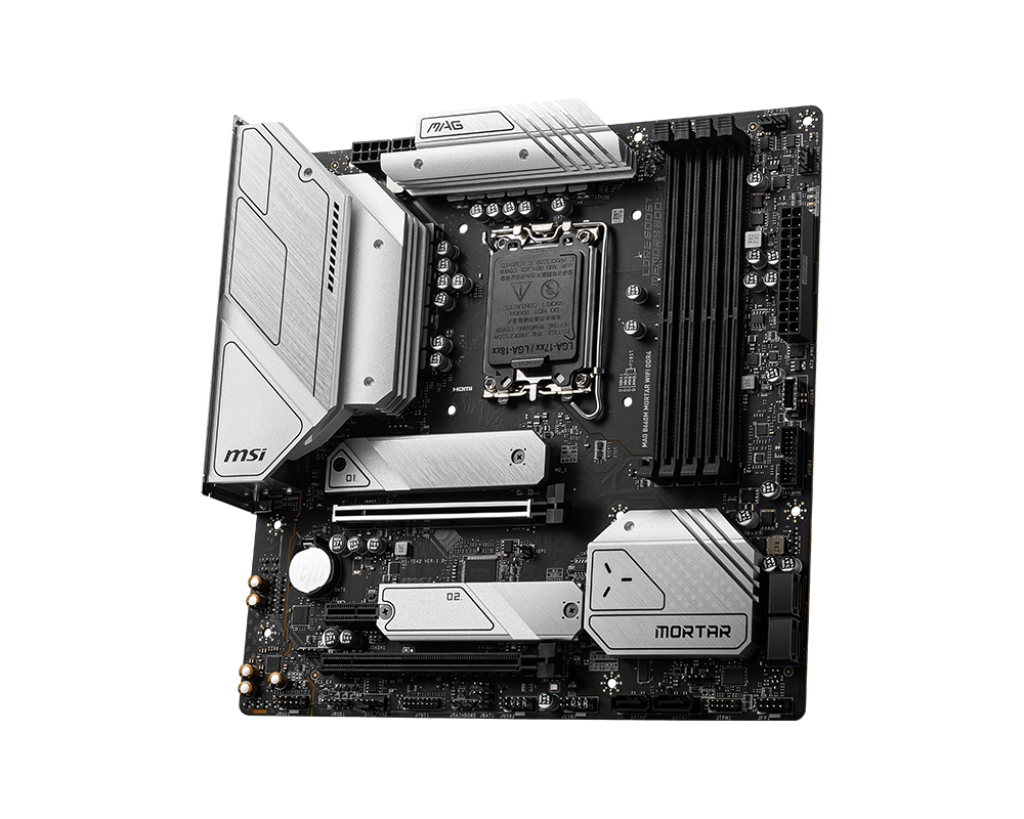

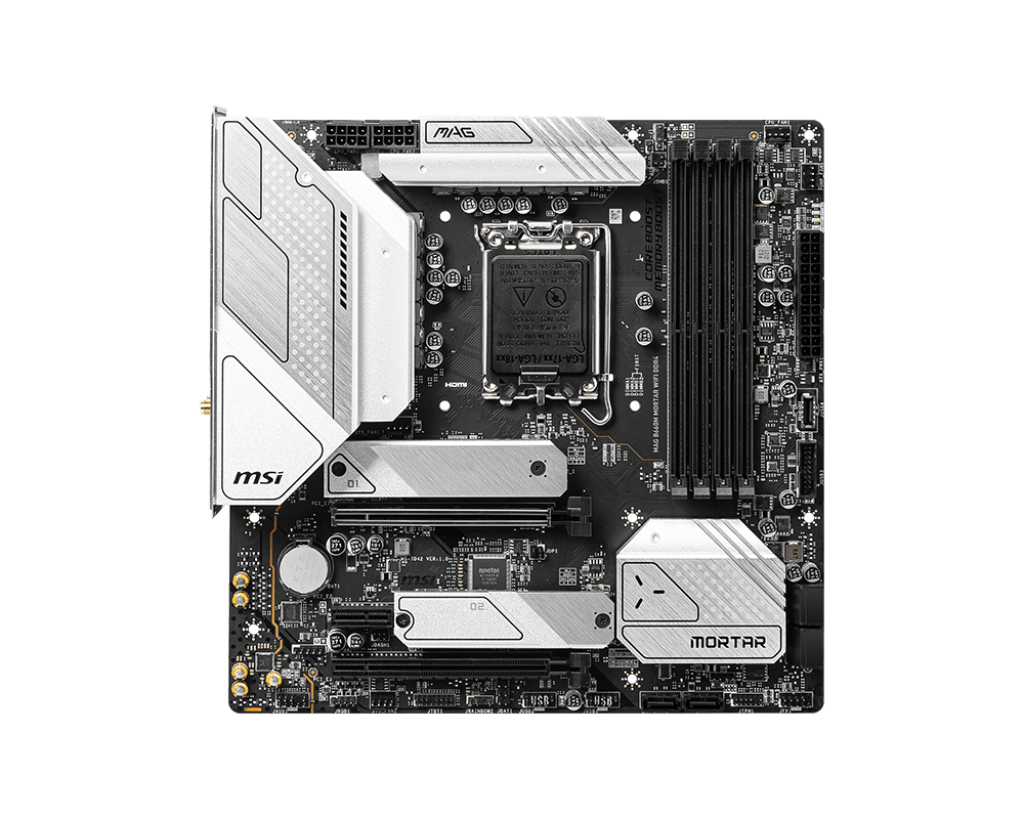

MSI B660M MORTAR WIFI

MSI MAG B660M MORTAR MSI DDR4 WIFI

SOPORTE

MEMORIA

• 4x DDR4 memory slots, support up to 128GB¹
• Supports 1R 2133/ 2666/ 3200 MHz
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333+ MHz
  • 1DPC 2R Max speed up to 4000+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 3600+ MHz
• Supports Dual-Channel mode
• Supports Intel^® (XMP)

ALMACENAMIENTO

• 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)¹
• 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
• 2x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Supports PCIe 4.0 x4
  • M2_2 slot (From B660 Chipset)¹
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports Intel^® Optane™ Memory

USB SUPPORT

Intel^® B660 Chipset

2x USB 3.2 Gen 1 5Gbps ports available through the internal connector

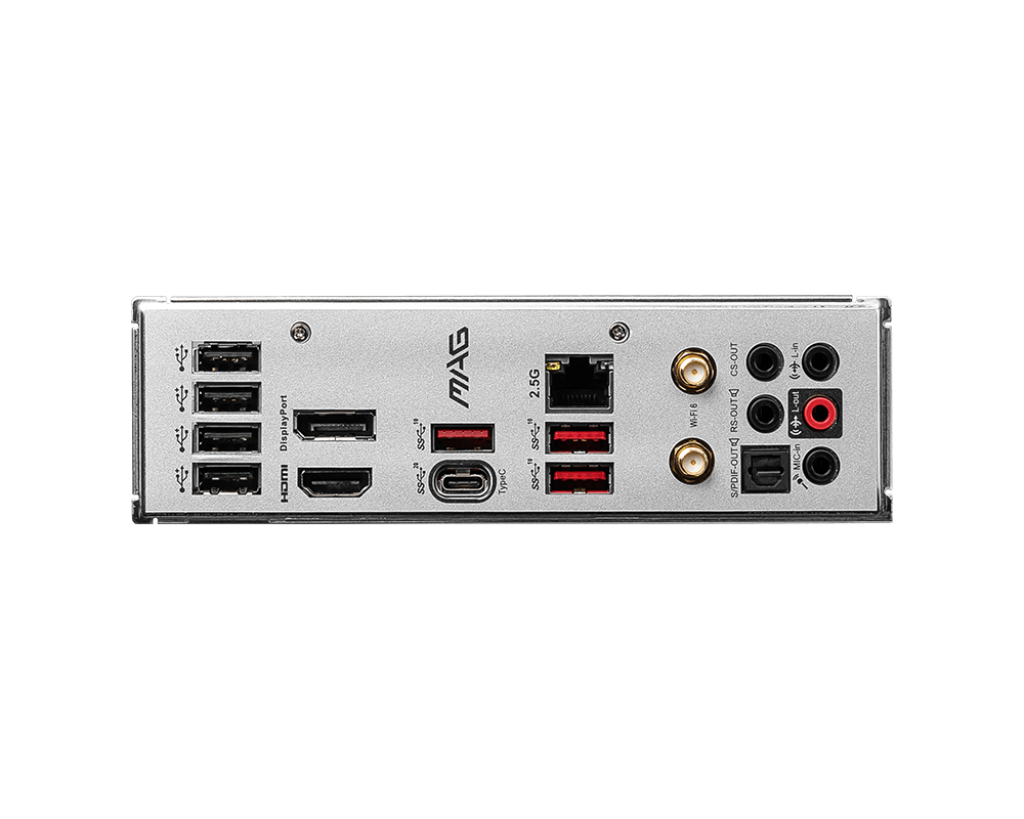

4x USB 2.0 ports on the back panelUSB Hub-GL3590

3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
